Ghost RT Bearing Kit KE0025

Spooklagerset KE0025 geschikt voor:

Ghost RT 2011
Ghost RT 2012

Ghost RT 2013

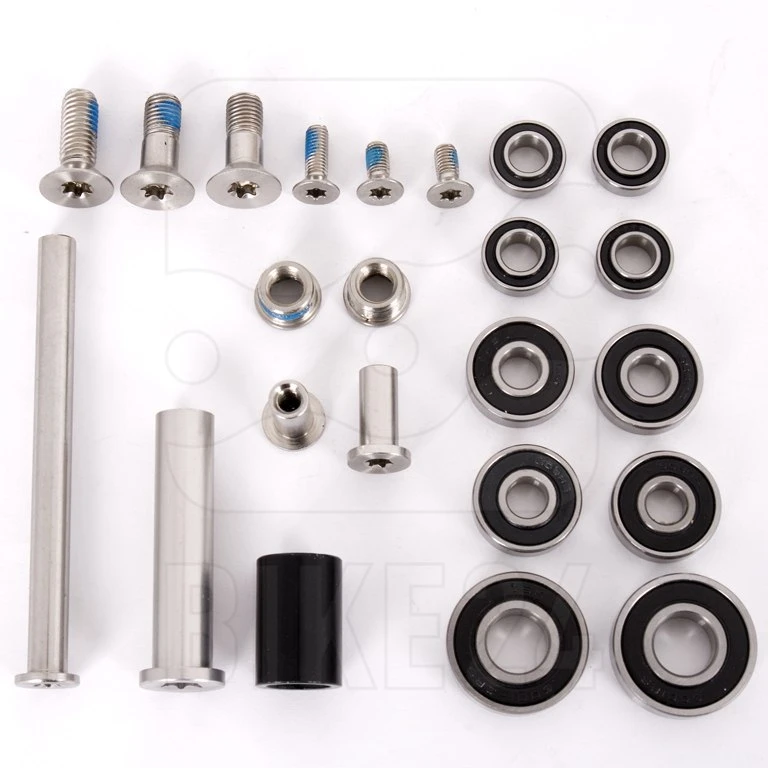

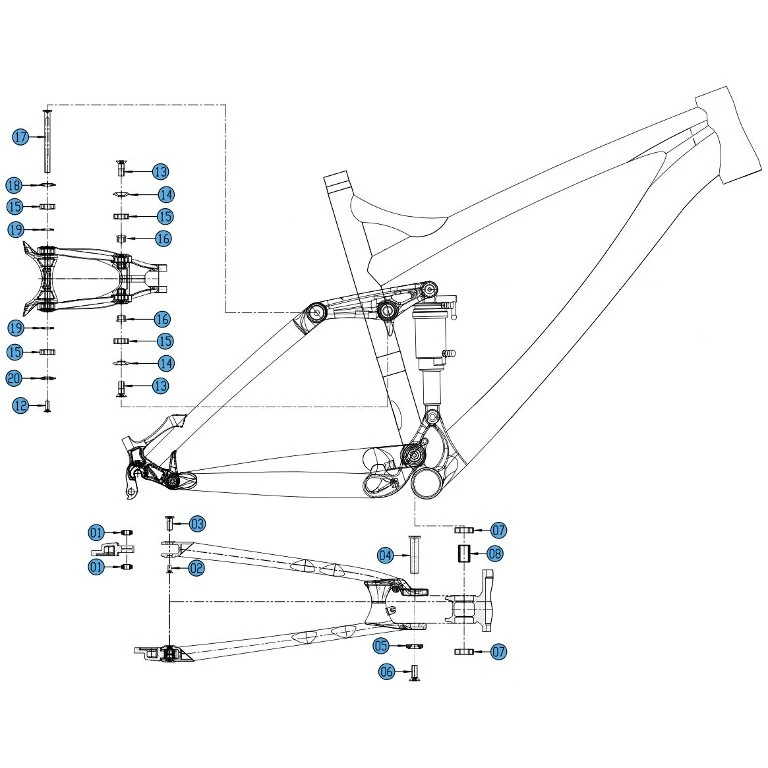

De kit bevat:

Nr. 1 – SM0652 – 4 kogellagers (688-KRR-2RS) – Ø8mm x Ø16mm x 7mm
Nr. 2 – SM0669 – 2 verzonken schroeven – M5 x 12mm
Nr. 3 – SM0618 – 2 assen – Ø13mm x Ø8mm x 20mm
Nr. 4 – SM0631 – 1 as – Ø17mm x Ø12mm x 55.3mm
Nr. 5 – SM0658 – 1 lagerkap – Ø25mm x Ø9mm x 6.2mm
Nr. 6 – SM0675 – 1 verzonken schroef – M8 x 23mm
Nr. 7 – SM0644 – 2 kogellagers (6001) – Ø28mm x Ø12mm x 8mm
Nr. 8 – SM0702 – 1 afstandhouder – Ø12.2mm x Ø17mm x 25mm
artikel 12 – SM0670 – 1 verzonken schroef – M5 x 16mm
Nr. 13 – SM0716 – 2 speciale verzonken schroeven – M8 x 22,5mm
Artikel 14 – SM0657 – 2 lagerkappen – Ø25mm x Ø9mm x 5.4mm
ref. nr. 15 – SM0646 – 4 kogellagers (608-2RS) – Ø22mm x Ø8mm x 7mm
Nr. 16 – SM0717 – 2 draadbussen – Ø14mm x M8 x M12 x 9,4mm
Nr. 17 – SM0642 – 1 as – Ø13mm x Ø8mm x 92,7mm
Nr. 18 – SM0660 – 1 Lagerkap – Ø25mm x Ø8mm x 4.2mm
Artikelnummer 19 – SM0707 – 2 afstandhouders – Ø19mm x Ø8mm x 2mm
Art. nr. 20 – SM0659 – 1 Lagerkap – Ø25mm x Ø5.5mm x 4.4mm
